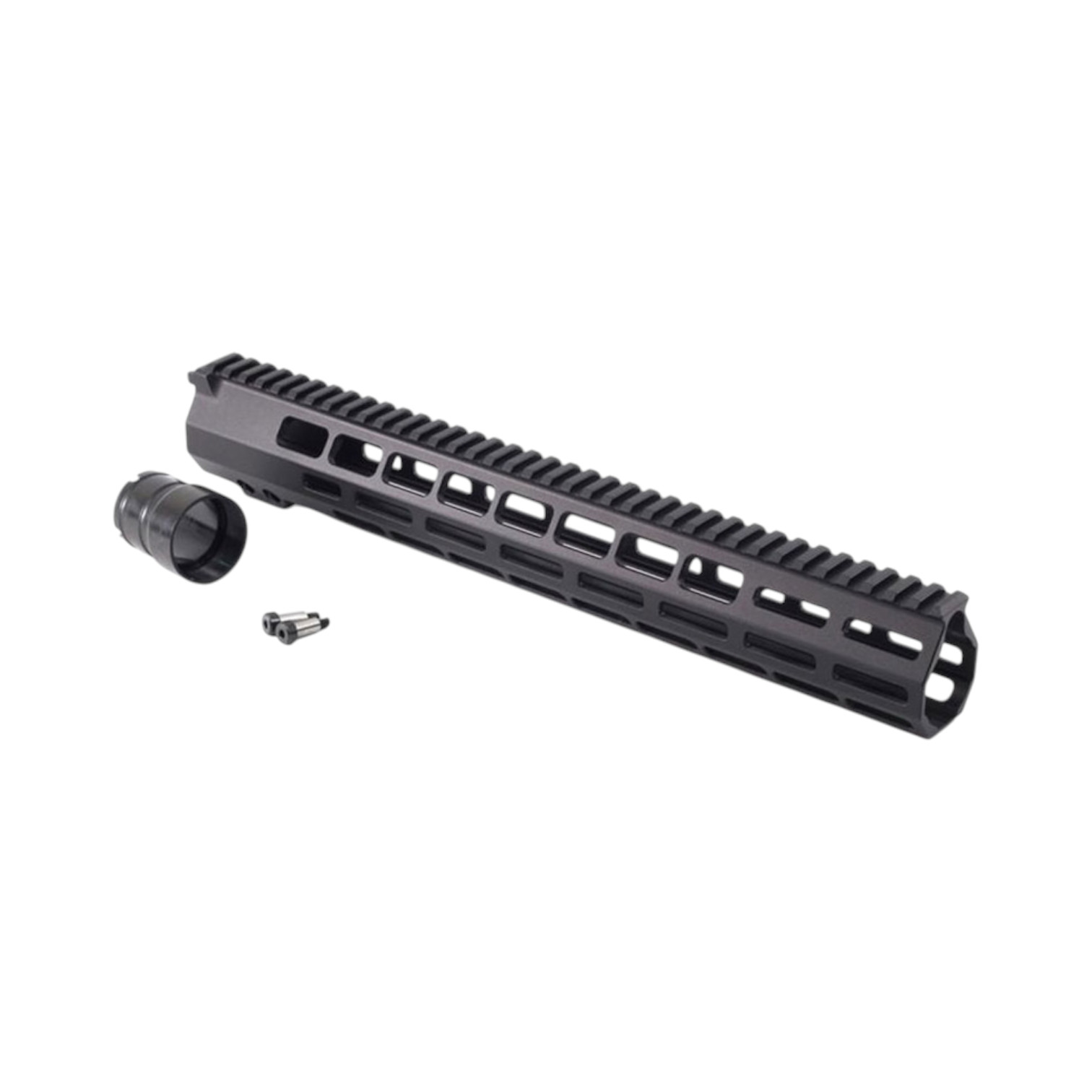

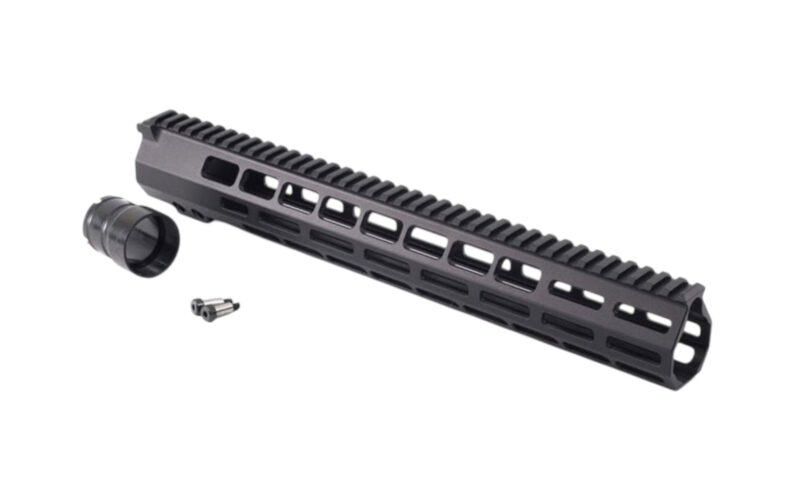

Behold, our tried and true handguard design that comes standard on all GGP MKII rifles is available for the builders out there. GGP AR-10 handguards are extruded from 6061-T6 Aircraft Grade Aluminum, finished with True Black Type III Class 2 Hard Coat Anodizing and are available in 15″ and 18″ lengths. The inside diameter is 1.380″ and uses a non-proprietary barrel nut that does not require timing. Simply tighten the barrel nut to 65 ft lbs, slide the handguard over until it is flush with upper receiver. Left and Right side index tabs ensure the handguard does not twist under use. Lastly use the two provided fastening screws to tighten the handguard around the barrel nut, at an approximate torque spec of 35 in lbs.

GGP AR-10 Handguard features:

• 6061-T6 Aircraft Grade Aluminum Extrusion
• For receivers with .210” tang height
• Full Length picatinny top rail with engraved numerical T-markings
• Non-Proprietary Barrel Nut and two fastening screws
• MLOK attachment slots at 3, 6 and 9 o’clock positions
• Forward MLOK slots at 1 and 11 o’clock positions
• Compatible with all forged upper receivers and most billet upper receivers
• Does not include wrench, barrel nut compatible with standard armorer’s wrench

Compatible with all forged upper receivers and most billet upper receivers. This handguard is designed to fit a DPMS style High Profile Forged Upper. Fitment to any other brand such as the Aero Precision M5 or billet uppers may require hand filing of the anti-rotation tabs. To further clarify, this handguard has two anti rotation tabs at top rear of rail to slide back onto the receiver. The space in between the tabs is a bit too narrow “out of the box” for some non forged uppers. With either a file or careful dremmel, you need to slowly take away some material on the inner (non visible) side of those tabs to create enough space to slide back around receivers like the Aero M5. It’s not a difficult job but requires a tool and a little care.

Weights:
15″ | 1.025 lbs
