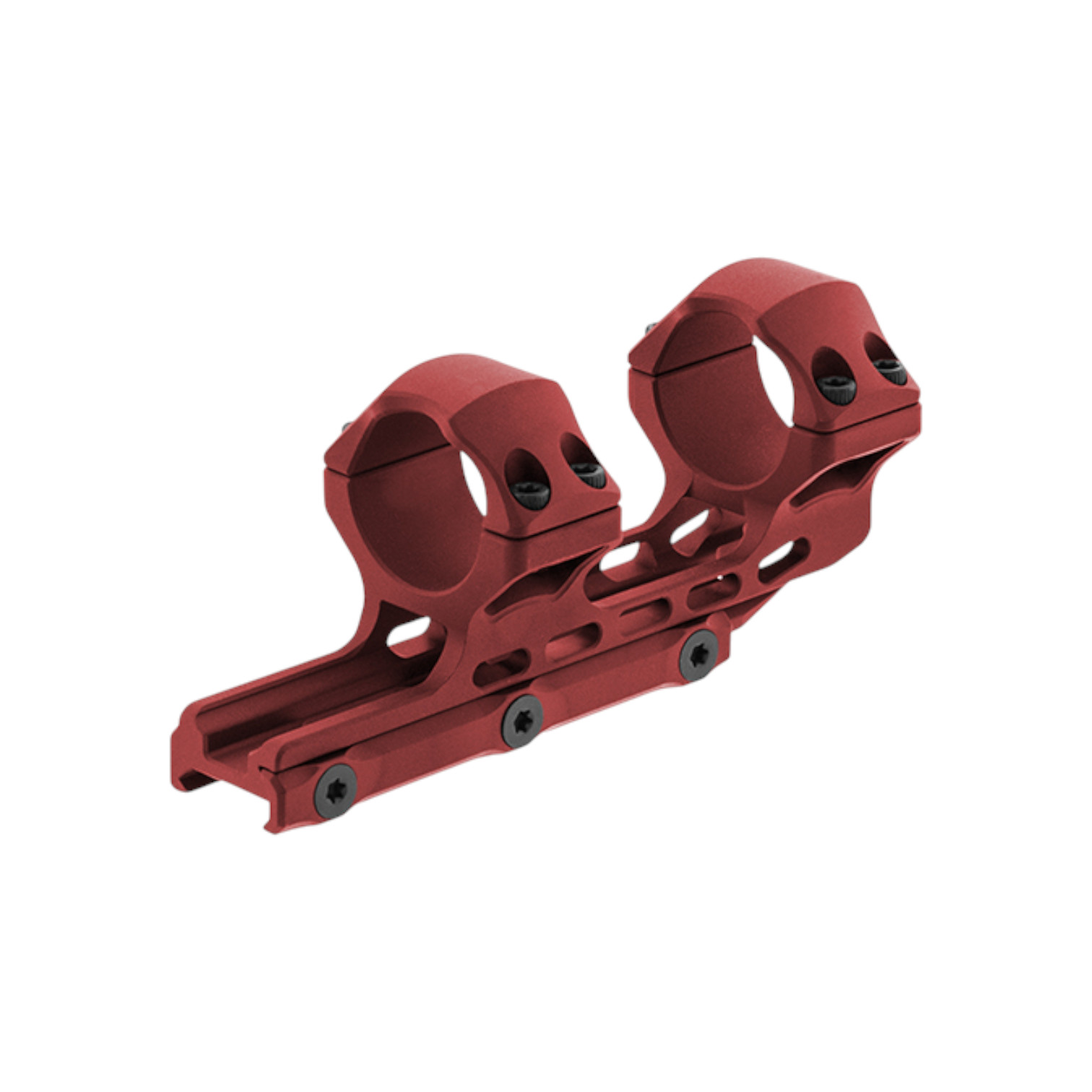

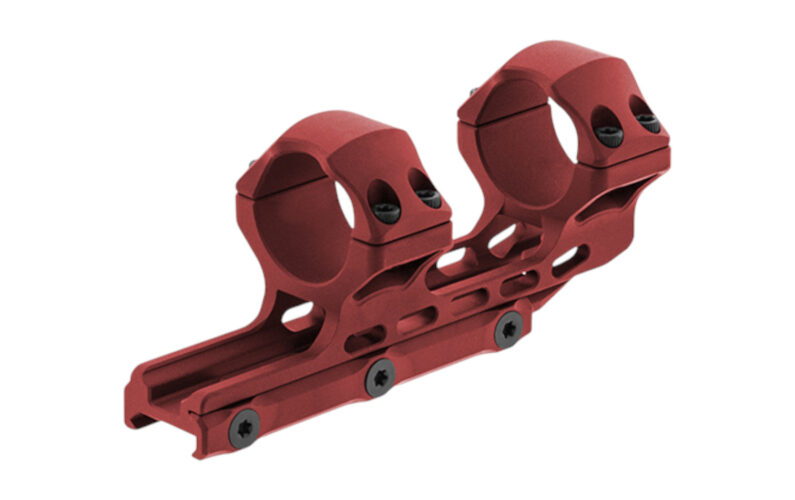

• 22 mm Saddle Height, 34 mm Offset Distance, 100 mm Base Length, High Profile Fits 30 mm Tube Optics with up to a 73 mm Outer Objective Diameter
• Precision CNC Machined from Aircraft Grade Aluminum with a Matte Anodization
• Designed with Lightening Cuts to Massively Reduce Overall Weight Without Compromising Structural Integrity and Durability
• Progressively Machined for a Precise Inner Ring Diameter to Achieve Optimal Tube Alignment
• Radiused Edges and Corners to Prevent Snagging, Scratching, or Tearing of Other Gear and for Effortless Access to Scope Windage and Elevation Turrets
• Utilizes Locking Torx Screws and Square-shaped Integral Recoil Stops for a Secure Zero Hold

Note: We recommend to tighten the ring top screws with a torque value of 25 in-lb and the side plate screw with torque value of about 35in/lb.

Rail Type: Picatinny
Height Profile: High
Material: 6061-T6 Aluminum
Weight: 5.4oz

Base Length: 3.94 in (100 mm)
Center Height: 1.46 in (37 mm)
Inner Diameter: 30 mm
Length: 5.27 in (134 mm)
Max Fit Obj. Bell Dia: 2.87 in (73 mm)
Offset Distance: 1.34 in (34 mm)
Ring Distance (Inner): 1.73 in (44 mm)
Ring Distance (Outer): 3.7 in (94 mm)
Ring Width: .98 in (25 mm)
Saddle Height: 0.87 in
Width: 1.84 in (46.7 mm)
