Bring modern optics to your classic-style lever gun. The Savage Revel is a fantastic rimfire platform, and this EGW Picatinny Rail allows you to mount a red dot or scope with confidence. Precision-machined to fit the receiver of the Savage Revel, it provides a solid, one-piece foundation that won’t shift under use.

Machined from domestic 6061 T6 aircraft aluminum, this rail is lightweight and durable. The Picatinny cross slots run the full length of the rail, giving you complete freedom to position your optic for the best eye relief and cheek weld.

Technical Specifications

• Rail Type: One Piece Picatinny (Compatible with Weaver rings)
• Machined From: Domestic 6061 T6 Aluminum
• Finish: Matte Black Anodize

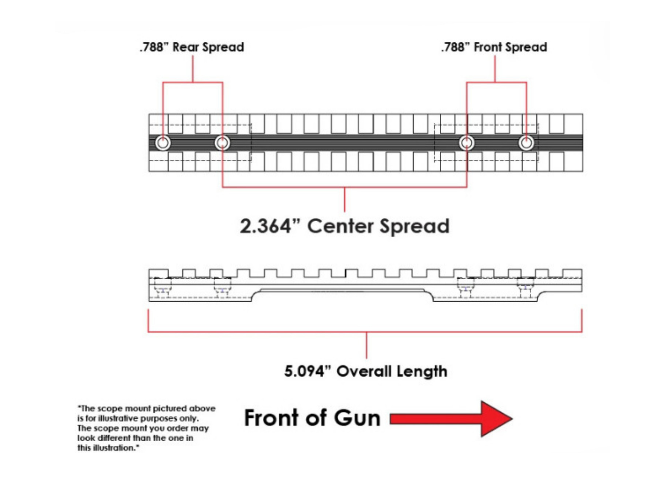

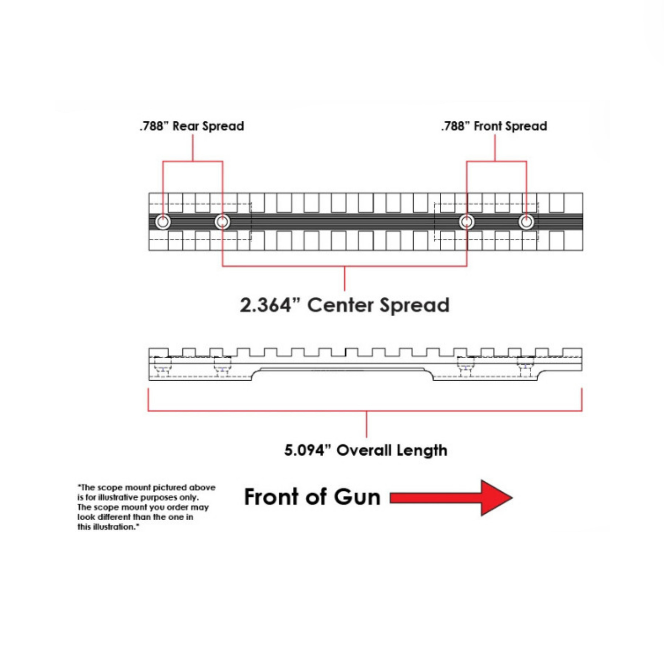

• Center Spread: 2.364″ (Center-to-Center of middle holes)
• Overall Length: 5.094″
• Mounting Hardware: #6-48 X 1/4 Screws & T-10 Bit Included
• Torque Specs: 20 in/lbs (Blue Loctite recommended)

Specs
Fits: Savage Revel Lever Action (Classic & DLX models).
Center Spread: 2.364″ (Distance between the two middle holes).
Mounting Hardware: #6-48 Screws (Included).
