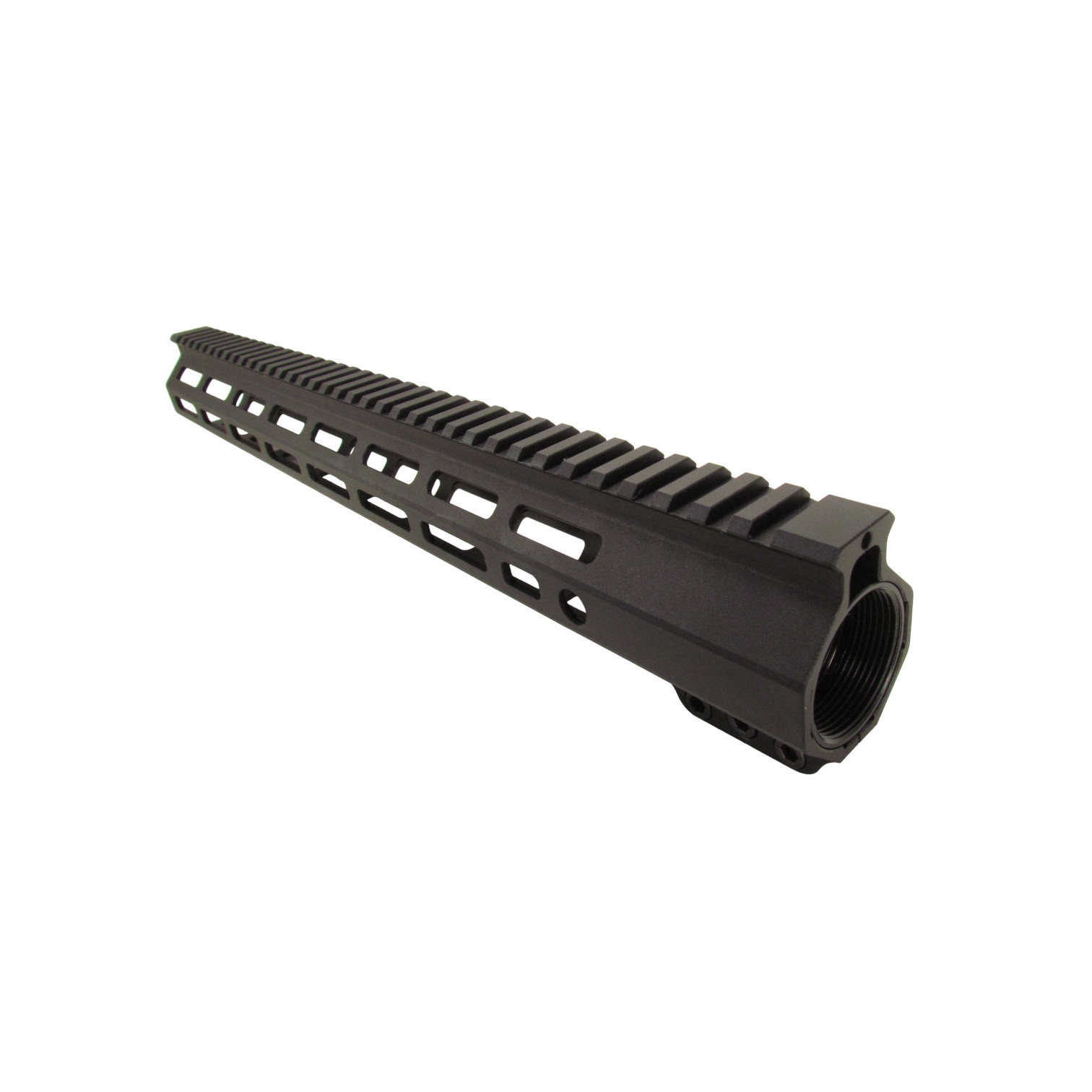

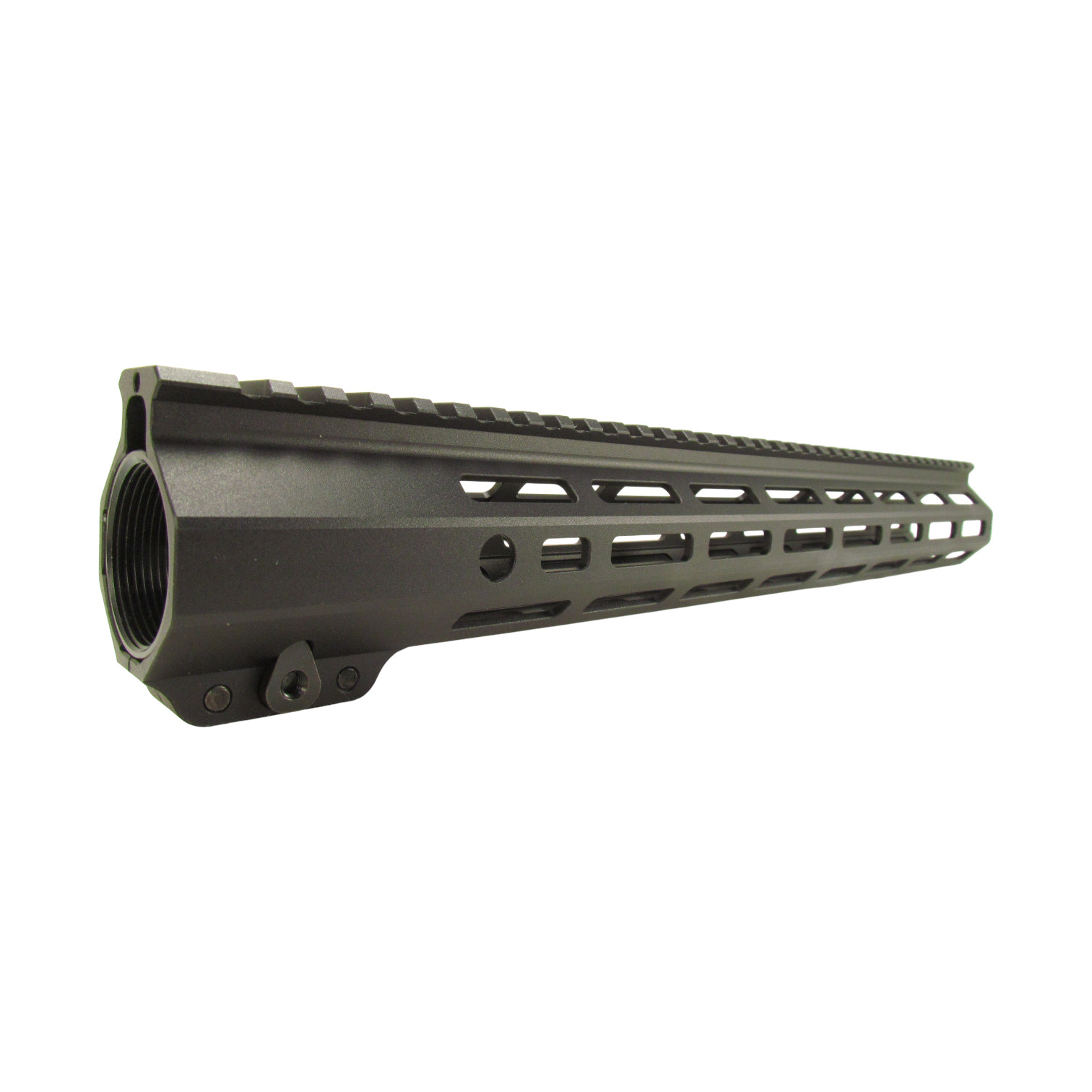

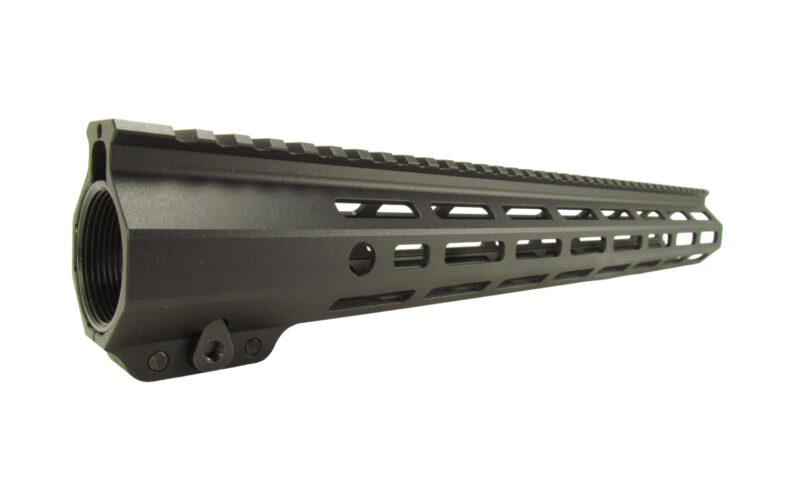

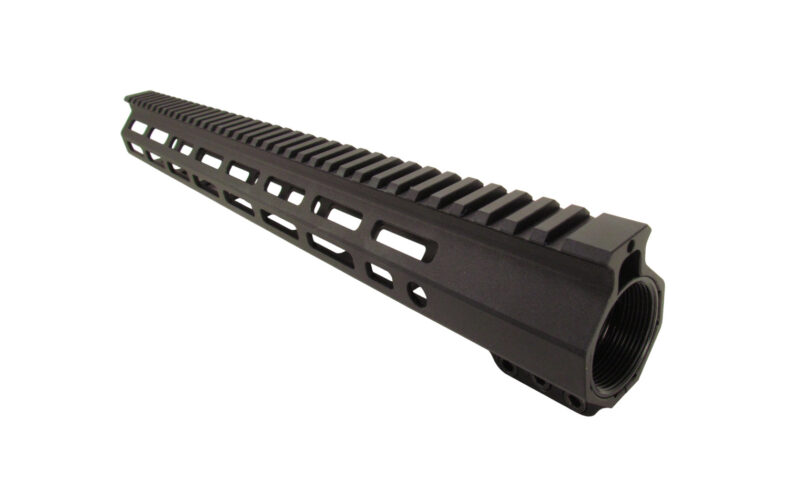

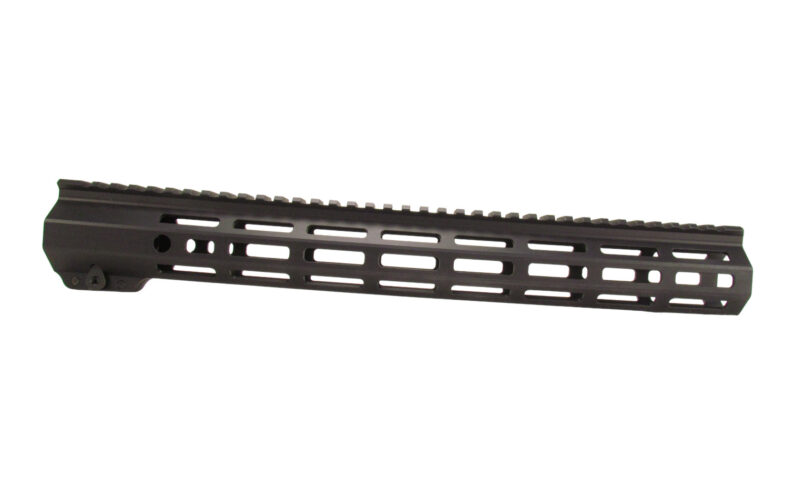

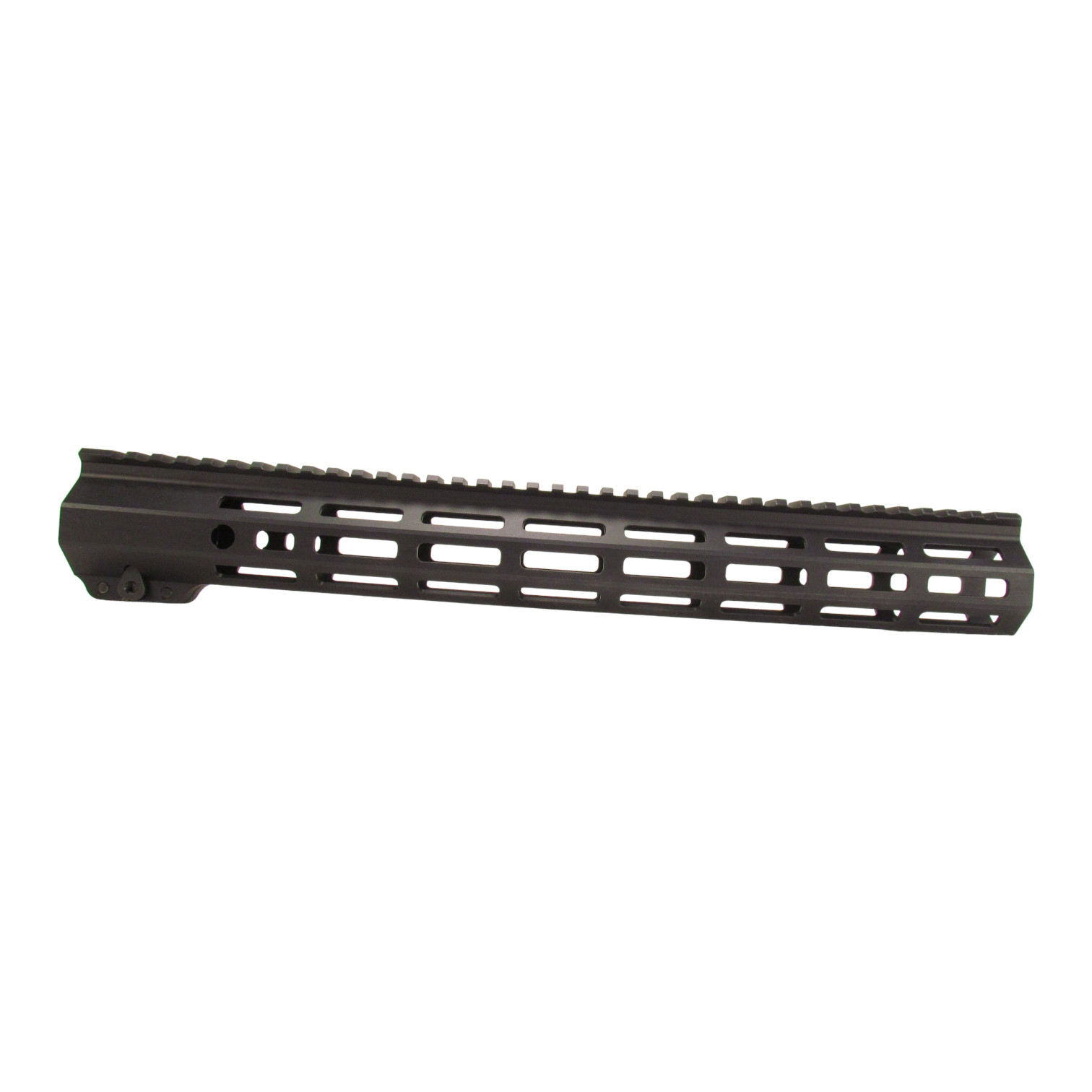

American Made M-LOK compatible rail system designed for versatility and simplicity. It features a monolithic top rail and he remaining 7 sides all feature M-LOK attachment slots. Precision machined from 6061-T6 aluminum extrusions then type 3 hard coat anodized you can be sure that this handguard can withstand an incredible amount of abuse. Its slim profile feels great in the hand yet with a 1.35″ inside diameter it can accommodate any true low profile gas block and even has enough clearance to recess some muzzle devices such as flash cans and linear compensators. It is a true do-anything rail system and the cost-value ratio makes it very hard to pass-up.
- Length: 15”
- 6061-T6 Aluminum
- Type 3 Hard Coat Anodizing
- 7075 Barrel Nut included
- QD socket on both sides
- Wrench is NOT included- you will need a 1 3/16” wrench
- 1.35″ ID
- Installed Weight: 12.9oz
- Made in the USA
- ASAL Attachment System
ASAL (Anti-Slip / Anti-Lift) system is simple, easy to install, easy to manufacture, and a cost effective solution to handguard slip and lift issues. The ASAL system locks the handguard to the barrel nut using a CamLok fastener featuring a 10 degree taper angle. This small taper creates a huge mechanical advantage, greatly increasing the force generated by a standard screw. The mating groove in the barrel nut is offset so as it is tightened, the handguard is pressed against the upper. This mitigates lift while also preventing slipping or rotation around the barrel’s axis. The result is a handguard that will not slip, rotate, or lift.
The result is a 10x decreases of handguard muzzle end lift.
Specifications
Platform | AR15 |
---|---|
Handguard Length | 15” |
Handguard Type | Float Tube, M-LOK |
Material | Forged Aluminum |
Manufacturer | OEM Manufacturer |
Colors | Black |
Compliance
Know all your state laws before purchase is made.
