- Proudly Designed and Made in USA
- High Profile P.O.I Rings Have a 1.30 in or 33 mm Center Height to Fit Optics with a 1 in Tube, for up to a 65 mm Outer Objective
- Patented P.O.I Locking Plate and Precision Optics Interface Design Features:
a) Flush-Fitting Low Profile Steel Locking Side Plate Controlled by Dual Spring-Loaded Guide Rods for Easy Installation
b) Square-Shaped Integral Recoil Stop for Complete Surface Contact with Picatinny Slot and Secure and Repeatable Zero Hold
c) Top and Bottom Rings Precision-Machined from 1 Piece of Al for Tight Tolerance Inner Diameter and Seamless Ring-to-Scope Interaction - 2 Piece Ring Set with 22 mm Ring Width, Torx-Locking and Equipped with 4 Top Torx Screws
- Designed to Fit on Mil-spec 1913 Picatinny Rail Platforms
- Machined from 6061-T6 Aluminum with Steel Construction and Matte Black Hardcoat Anodize
- Rated for .50 BMG
NOTE: We recommend to tighten the ring top screws with a torque value of 25 inch-lb and the side plate screw with torque value of 45 inch-lb.
Material: 6061-T6 Aluminum, Steel
Number of Pieces: 2
Color: Black
Surface Finish: Anodized
Quick-Detachable: No
Mount Type: Picatinny
Height Profile: High
Caliber Rating: .50 BMG
Top Screw Torque Value: 25in-lbs
Side Plate Torque : 45in -lbs

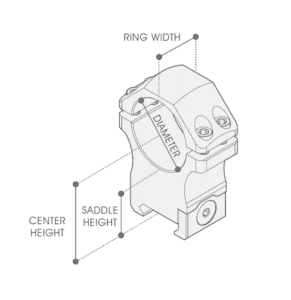

Dimensions
Center Height: 1.30in
Inner Dia.: 1in
Max fit Objective Bell Diameter: 2.56in
Ring Width: 0.87in
Saddle Height: 0.79
Weight: 5.6oz
Specifications
Manufacturer | Leapers / UTG |
---|
Compliance
Know all your state laws before purchase is made.
